| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Color | Yellow & Blue |

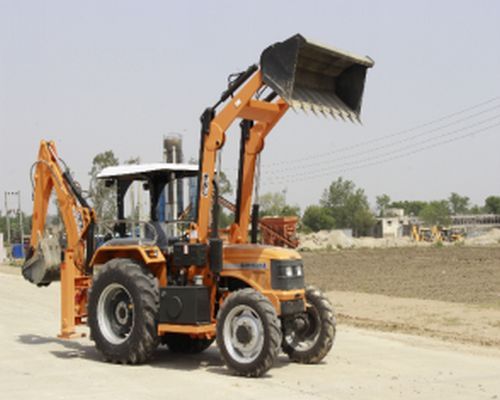

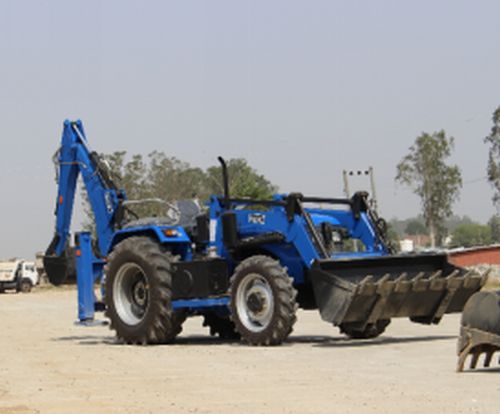

| Type | Tractor Backhoe Loader |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Country of Origin
Made In India
Application
Industrial
Features
Heavy Duty, Perfect Shape
Salient features:
- Direction control valve with relief valve. This prevents overloading of hydraulic Systems & low maintenance cost.
- Strong cross sections & high quality steel used. This gives longer life.
- Easily detachable. Easy fitting & easy removal.
- Twin cutting blade for more life. Blade changing cost is less
Technical Specifications
| Backhoe Specifications | Loader Specifications |
| • Maximum Digging Depth10.5 feet • Reach-ground Level To Rear Wheel Center17.25 feet • Reach-ground Level To Slew Center13.30.2feet • Reach-full Height To Slew Center4.9 feet • Maximum Working Height13.5 feet • Maximum Load Over Height10.2 feet • Bucket Rotation1700 • King Post Travel4 feet Max bucket Capacity 250 kg.(Standard) |
• Maximum Height 13.7 feet • Effective Height 12/13.5 feet • Dump Height at 45010.7/11 feet • Reach at Ground Level Bucket Tooth to Front Tyre Center7.4 feet • Reach at Dump Height to Front Tyre Center2.4 ft • Dumping Angle510 • Working Depth150 mm Max bucket Capacity 900 kg.(Standard) |
